              How to Install CIL Extensions and Download/Activate Heartwork Catalogue

              How to Install CIL Extensions and Download/Activate Heartwork Catalogue

              Heartwork does not have its own extension in CET and instead is part of the Commercial Interiors Library Extension.

              If the Commercial Interiors Library Extension is not already installed, please follow below starting with Step #1 to install this extension and download the Heartwork catalogue

              If the Commercial Interiors Library Extension is already installed, please proceed to Step #2 to start the process for downloading the Heartwork Catalogue within this extension.

              Heartwork does not have its own extension in CET and instead is part of the Commercial Interiors Library Extension.

              If the Commercial Interiors Library Extension is not already installed, please follow below starting with Step #1 to install this extension and download the Heartwork catalogue

              If the Commercial Interiors Library Extension is already installed, please proceed to Step #2 to start the process for downloading the Heartwork Catalogue within this extension.

              Step #1 - Get the CIL Extension

              Step #1 - Get the CIL Extension

              1. Purchase and Install the Commercial Interiors Library (CIL) Extension: Commercial Interiors Library Extension – Configura Help Center

              The CIL Extension in CET allows access to the CIL catalogues. Heartwork is a CIL catalogue.

              1. Purchase and Install the Commercial Interiors Library (CIL) Extension: Commercial Interiors Library Extension – Configura Help Center

              The CIL Extension in CET allows access to the CIL catalogues. Heartwork is a CIL catalogue.

              Step #2 - Install Notify through the CIL - License Manager

              Step #2 - Install Notify through the CIL - License Manager

              1. Login to the: CIL - License Managerprogram, then click on CI Library Installerin the left pane to download the installer.
              2. Once the CI Library Installer program is downloaded, double-click on the file to launch the installer.

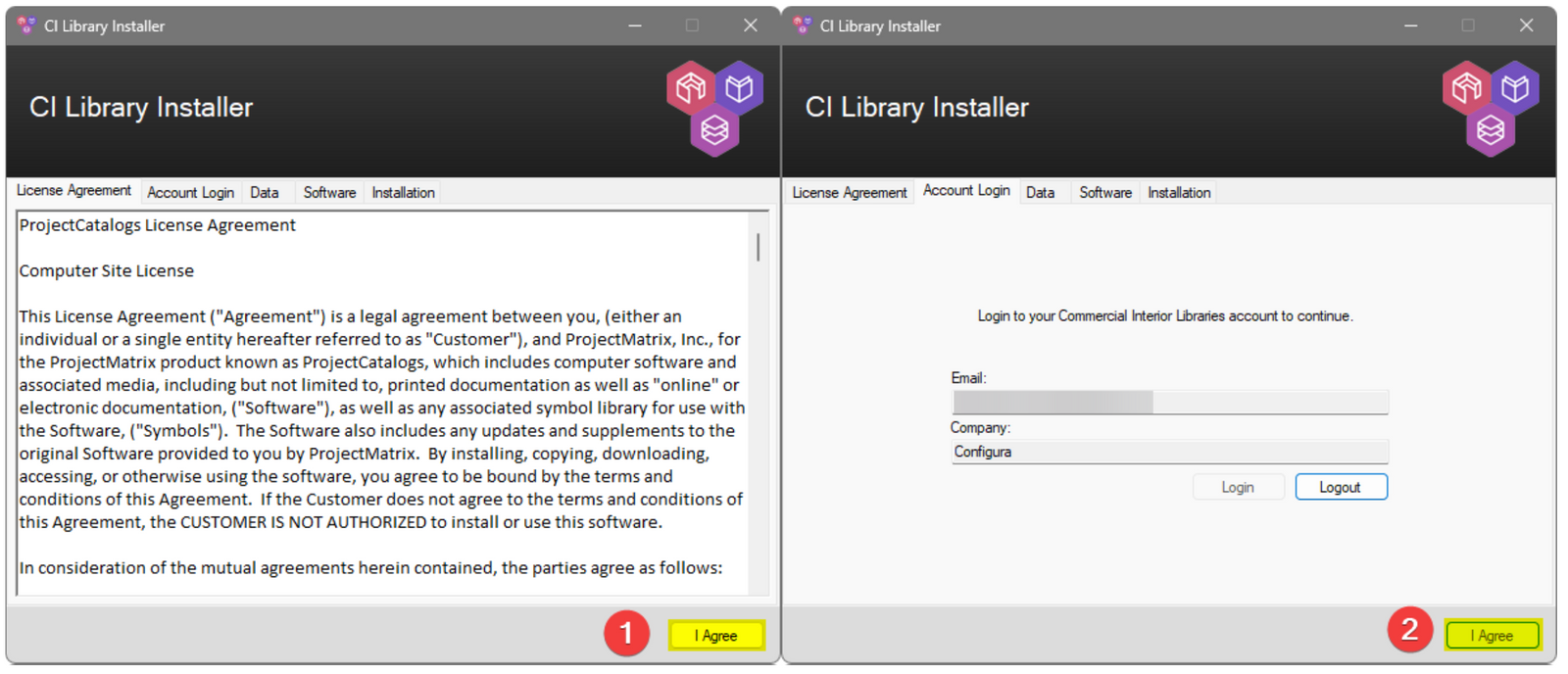

              3. After the installer is launched, you will be prompted to log in to your Commercial Interiors Libraries account.

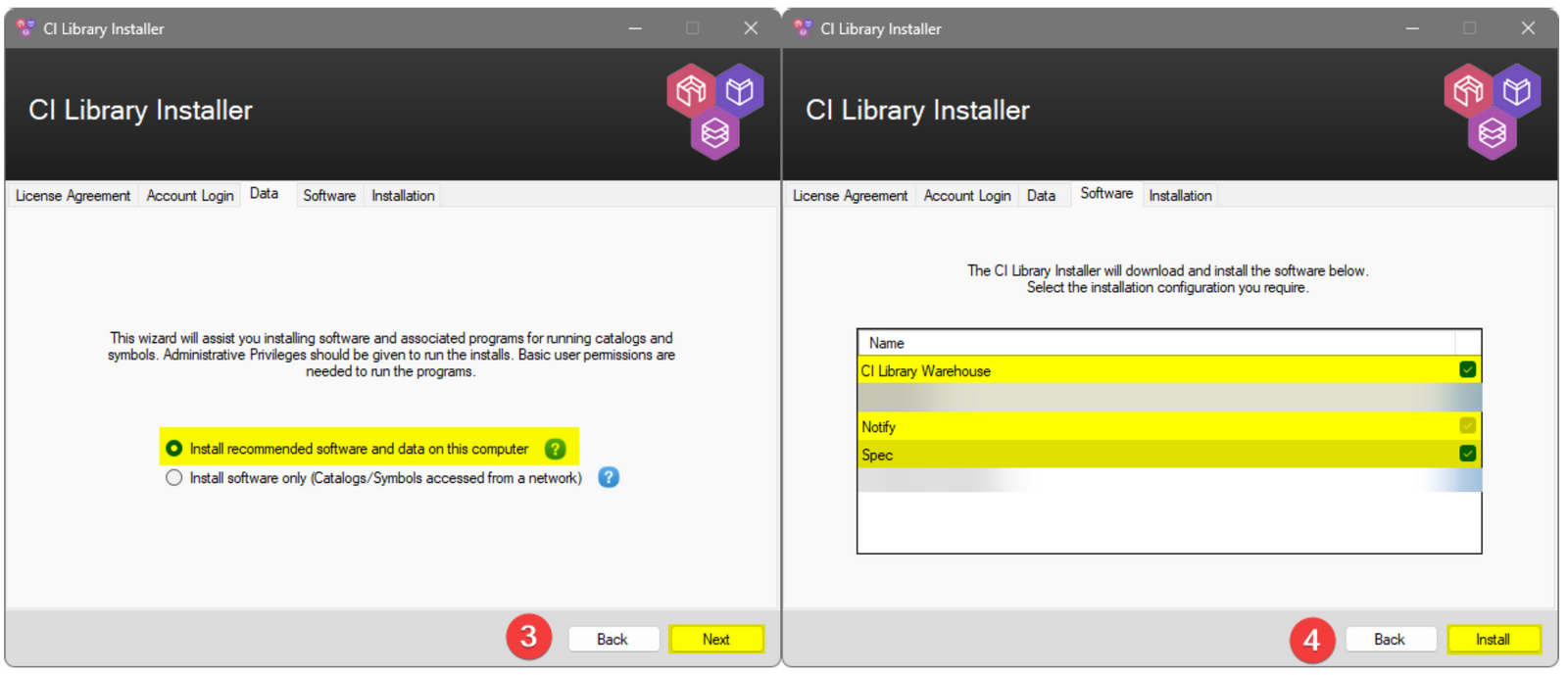

              4. Follow the prompts to install the recommended software and data on your computer.
              5. After the software is downloaded, there will be a Notify shortcut icon on your Desktop.
              1. Login to the: CIL - License Managerprogram, then click on CI Library Installerin the left pane to download the installer.
              2. Once the CI Library Installer program is downloaded, double-click on the file to launch the installer.
              3. After the installer is launched, you will be prompted to log in to your Commercial Interiors Libraries account.
              4. Follow the prompts to install the recommended software and data on your computer.
              5. After the software is downloaded, there will be a Notify shortcut icon on your Desktop.

              Step #3 - Download Heartwork Catalogue Data

              Step #3 - Download Heartwork Catalogue Data

              1. Click on the Notify shortcut icon to launch the program.

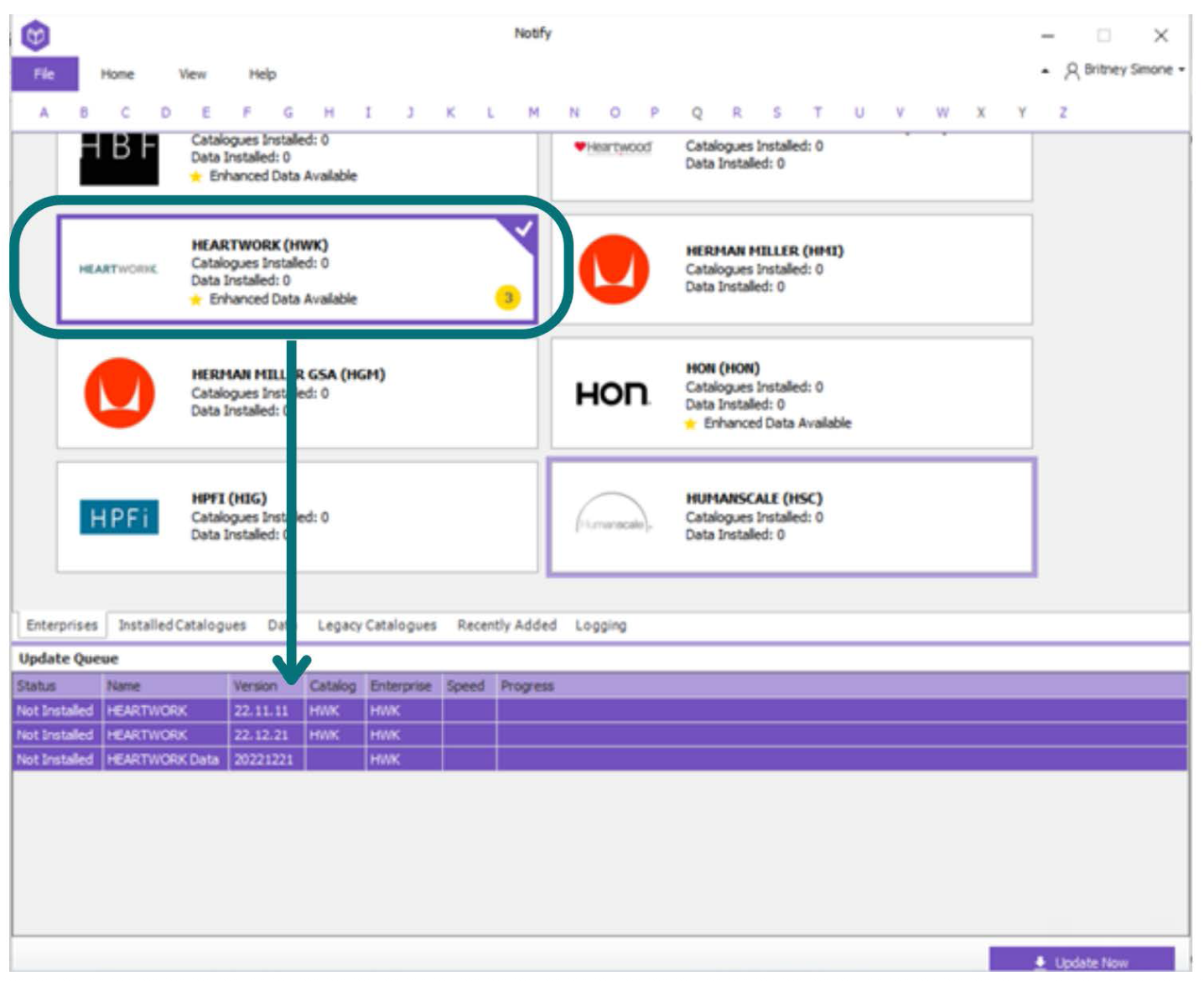

              2. After Notify is launched, you can search for the Heartwork (HWK) catalogue in Notify.

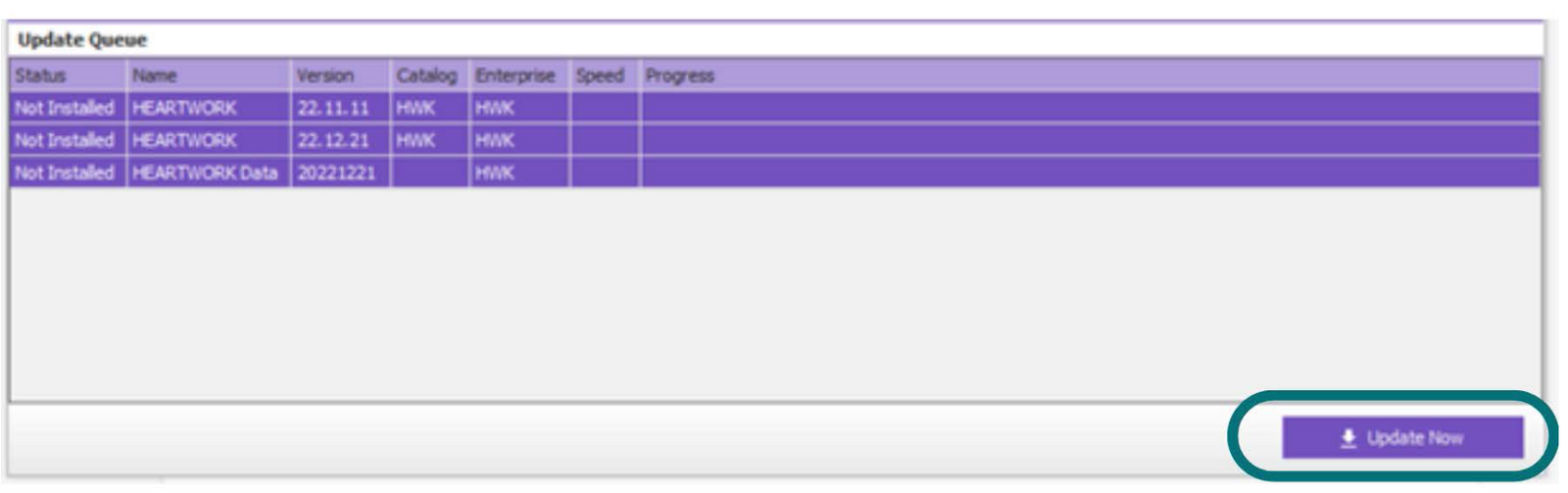

              3. Click on the Heartwork (HWK) catalogue. It will populate the Update Queue section at the bottom of the window in purple.
              4. To finish downloading the catalogue, click Update Now in the bottom right corner.

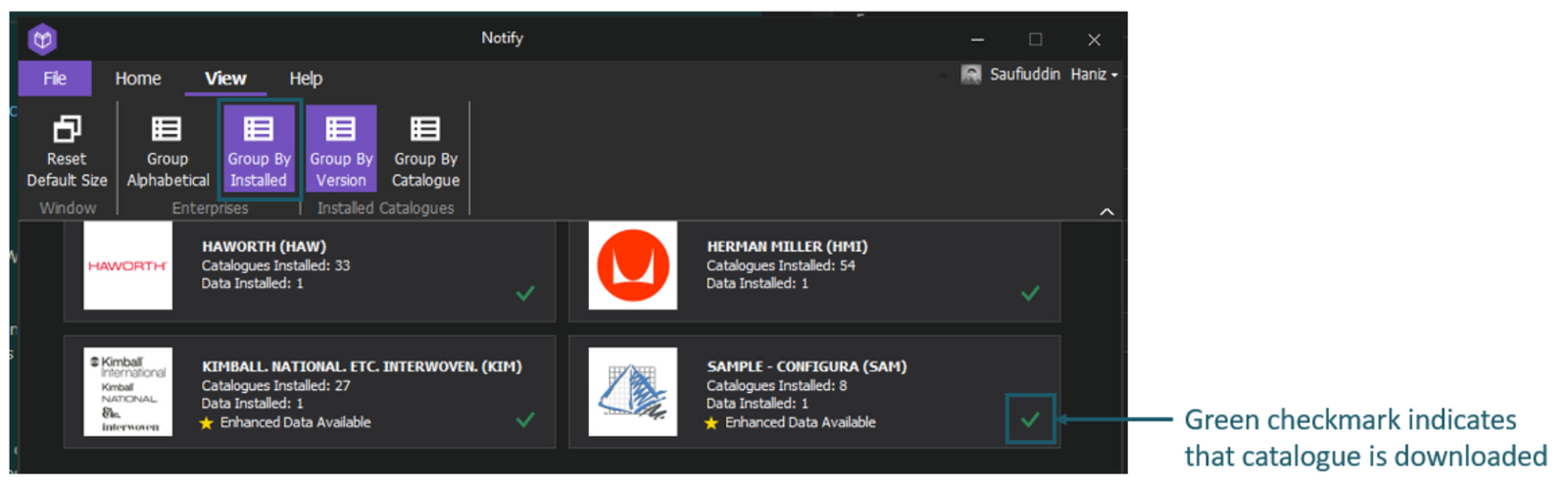

              5. To verify that the catalogue is downloaded, click on the View tab in Notify, then select Group by Installed.
              6. Your downloaded catalogues will have a green checkmark in the bottom right corner.
              1. Click on the Notify shortcut icon to launch the program.
              2. After Notify is launched, you can search for the Heartwork (HWK) catalogue in Notify.
              3. Click on the Heartwork (HWK) catalogue. It will populate the Update Queue section at the bottom of the window in purple.
              4. To finish downloading the catalogue, click Update Now in the bottom right corner.
              5. To verify that the catalogue is downloaded, click on the View tab in Notify, then select Group by Installed.
              6. Your downloaded catalogues will have a green checkmark in the bottom right corner.

              Step #4 - Activate Heartwork in CET

              Step #4 - Activate Heartwork in CET

              1. After a catalogue is downloaded with Notify, the catalogue will need to be activated in CET.
              2. To complete the activation, follow the remaining steps here:
                Catalogue Manager – Configura Help Center
              1. After a catalogue is downloaded with Notify, the catalogue will need to be activated in CET.
              2. To complete the activation, follow the remaining steps here:
                Catalogue Manager – Configura Help Center
              Download PDF Instructions
